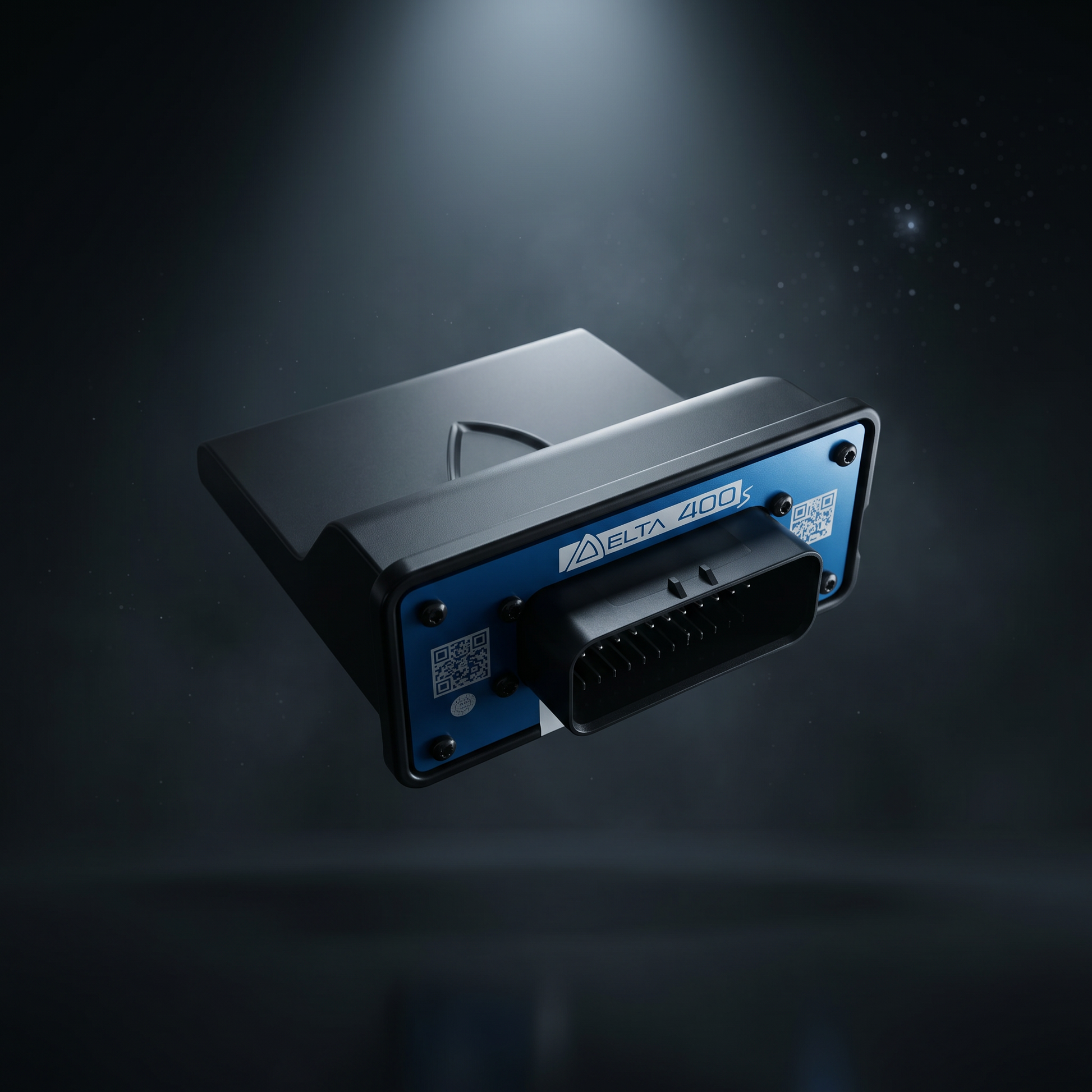

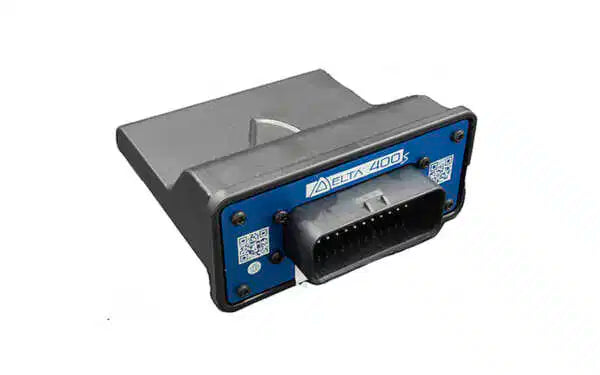

SCS Delta 400S ECU

The SCS Delta 400S ECU is our smallest unit, but it is also the fastest and most powerful in its class. Packed with features, lightweight, and exceptional value — it truly delivers a punch.

With adaptable hardware configuration, CAN bus integration, and advanced control functions such as variable valve timing, closed-loop boost and fuel control, coil-on-plug ignition, and up to 6 fuel injector outputs, the Delta 400S offers outstanding flexibility. All configuration and calibration are handled through our SXTune software.

Fuel calculations can be based on volumetric efficiency, pulse width, TPS, MAP, or a combination of these strategies.

Hardware Specification

• High-performance 32-bit MPC5634M core processor @ 80MHz (Power Architecture Book E)
• Dedicated Time Processor Unit for core-independent, angle-based signal processing
• 1.5MB Flash memory
• 6 injector outputs
• 4 ignition outputs (software selectable logic level or IGBT power)
• 5 low-side outputs (3A)
• 3 linear analogue inputs
• 3 NTC analogue inputs
• 2 lambda analogue inputs
• 1 CAN 2.0B channel
• 1 x 500mA sensor supply output
• Internal barometric pressure sensor
• 3 VR/Hall effect digital inputs (software selectable)
• All outputs protected against short circuit with feedback for short/open circuit diagnosis

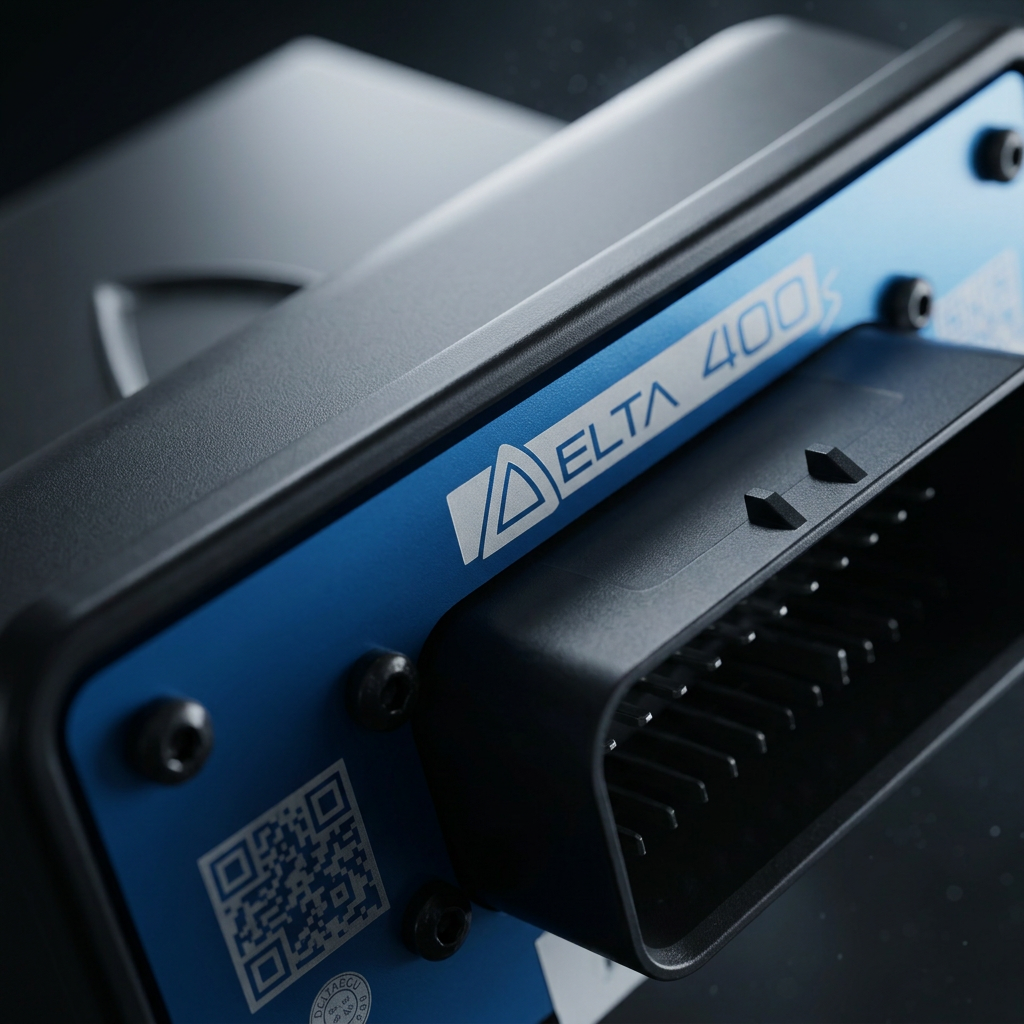

• 35-way AMPSeal connector and bespoke ABS enclosure suitable for engine bay mounting
• Made in the UK using 100% surface mount technology
• 6–18V operating voltage
• Internal monitoring of battery voltage, reference supply voltages, and ECU temperature
• Size: 100 x 160 x 35mm
• Weight: 228g

Software Specification

• Intuitive bespoke real-time calibration tool using micro USB CAN interface dongle
• Up to 4 cylinders: direct ignition and sequential injection
• Up to 6 cylinders: wasted spark and sequential injection
• Up to 8 cylinders: wasted spark and batched injection
• Engine logbook recording vital engine statistics
• Wide range of OE trigger patterns supported
• 32 x 32 variable breakpoint fuel and ignition main maps
• Alpha-N, Speed Density, or Hybrid Alpha-N with MAP correction load input
• Maximum engine speed breakpoints up to 16,500 rpm
• Individual cylinder trim maps for both fuel and ignition
• Stereo closed-loop fuelling control (narrowband or wideband) with lambda auto mapping
• User-configurable hard and soft engine speed limiters as a function of coolant temperature
• User-selectable OEM CAN output to drive original equipment dashboards and EPAS systems
• Comprehensive transient fuelling control
• Closed-loop boost control with overboost fuel cut protection and gear offsets
• Comprehensive environmental corrections for fuelling and ignition
• Cranking and cold start enrichment maps
• Overrun fuel cut-off strategy
• Closed-loop idle speed control for both ignition and idle air bypass valve
• Variable camshaft timing control for up to 2 camshafts
• All sensor inputs are user configurable
• VTEC cam switching control
• Configurable shift lamp control
• Comprehensive launch control (switched or fully automatic)
• Pit lane speed limiter
• Closed or open loop gear cut switch or direct GCU input, with full ignition cut or ignition retard
• 4-cylinder staged injection

https://www.scs-delta.co.uk/_files/ugd/aa29a4_c09e889d58714fb8ad1faa8753d89c00.pdf

Get in touch for full motorsport electronics system packages — from wiring harness design and manufacture through to final ECU calibration. A true one-stop shop for performance.
