Mini F56 JCW Tuning - From Wrecked to 317 BHP!
This Mini F56 JCW has had a rough time, it has only clocked 44,000 miles and suffered a bad remap by someone unknown, and the tune was too aggressive.
The result? Damaged piston ring lands and melted pistons, requiring a new engine. The car was brought to us to remove the problematic tune, perform a thorough health check, and get it running right. While we addressed most issues, we noticed a significant running problem that we’re documenting here. This behaviour isn’t something we’ve encountered yet on the B48 or B58 engines, though it does resemble a known issue with some BMW models.
During light throttle, the engine ran super erratically, and the instability is noticeable. Initially, it sounded like wastegate fluctuation, but that doesn’t appear to be the case. On the road, the engine feels jerky, especially in fourth gear, and the exhaust note oscillates. We captured a data log to investigate further.
The log revealed the intake and exhaust cam positions fluctuated wildly. For instance, the exhaust cam showed variations from 25 degrees of advance down to 6 degrees nearly 20-degree swing which is likely causing the unstable behaviour. We also noticed significant oil pressure fluctuations, likely linked to a faulty VANOS solenoid allowing excess oil flow.
To confirm, we briefly tested the Mini F56 JCW engine with the intake VANOS solenoid unplugged, fixing the cam targets at zero degrees. As expected, this stabilised the oil pressure and stopped the fluctuation.
Fortunately, we have several spare B48 engines in stock, so we replaced the faulty VANOS solenoids with known working ones and reassessed the engine’s issue, but this made no difference. Since the solenoids were known to be working, we decided to dig deeper. The car was taken off the dyno, and further investigation began.
The car’s history wasn’t entirely clear, but we knew the engine had been replaced at another garage following piston failure. We suspected an issue with the VANOS system, the central control valves, or something similar. After disassembling the engine and removing the VANOS hubs, we discovered that the central control valves, VANOS hubs, and camshafts were mismatched. This 2015 car had a late-model 2017 engine installed, which caused compatibility issues.
Fortunately, the fix was straightforward. We installed VANOS hubs and control valves compatible with the engine, then updated the ECU software to account for the newer components. After reassembly and a road test, everything was back on target, with no further running issues.

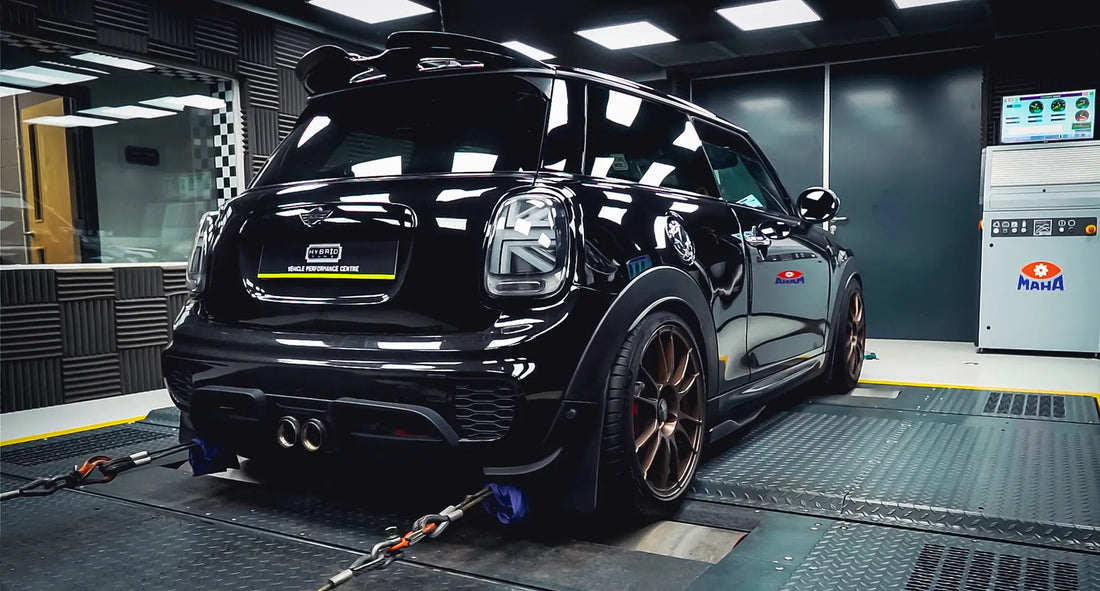

With the car fixed, we returned to the dyno. On the stock tune with the updated software, the car performed well. We then remapped the JCW with our Stage 2 calibration, which delivered excellent results.
The only significant modifications were a decat downpipe, a JCW Pro exhaust, and an open-cone filter. While still running with the stock intercooler, running on Shell V-Power fuel, the car produced 317.4 BHP (averaged over three runs) and 440 Nm of torque.
These results are exceptional given the minimal bolt-on upgrades. Cold temperatures certainly helped, but the car is now performing reliably with a near-new engine, turbo, and supporting mods. The customer has a powerful and well-sorted car delivering nearly 320 horsepower. Overall, we’re delighted with the outcome so is the customer!
